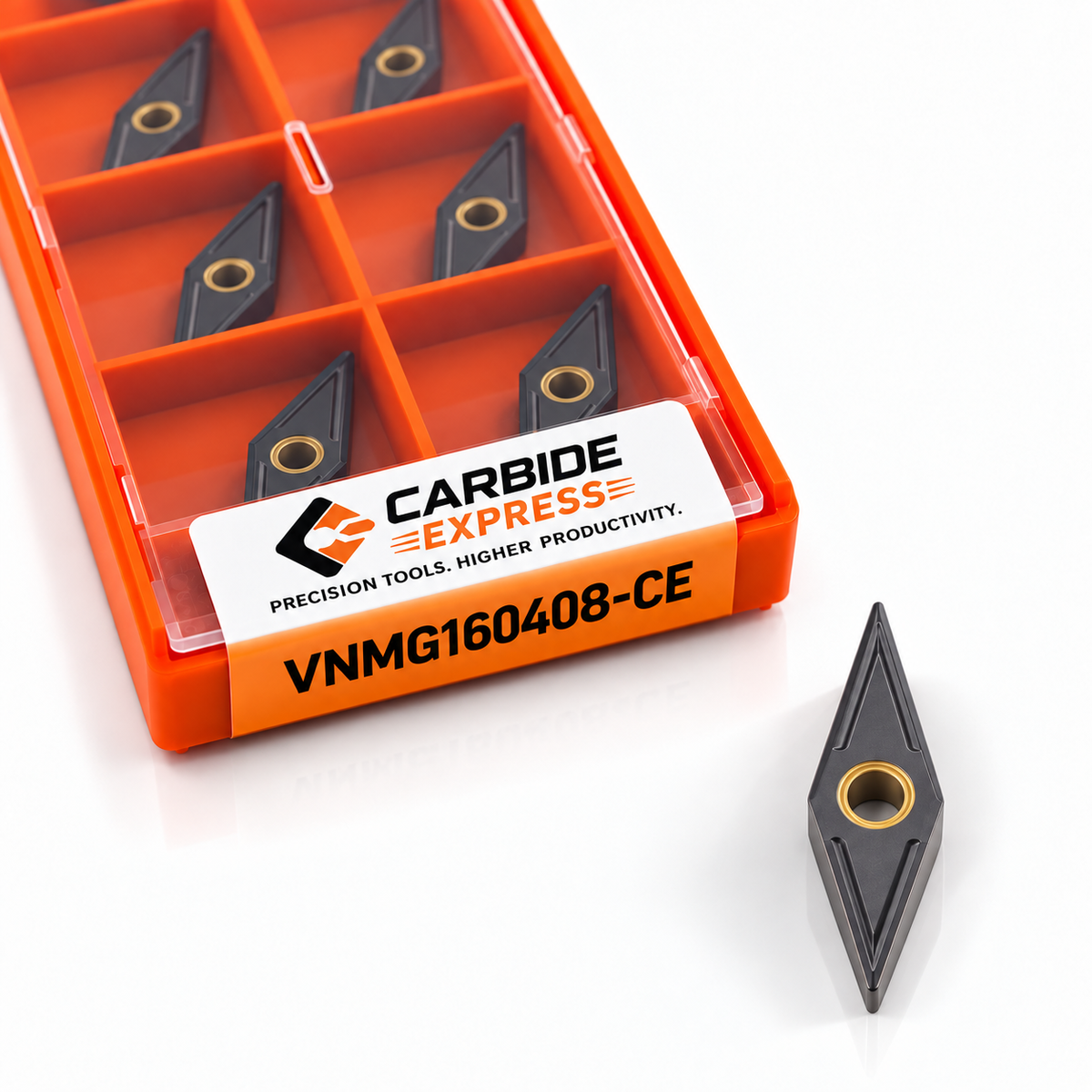

VNMG 160408 Carbide Turning Insert | Carbide Express
VNMG 160408 Carbide Turning Insert | Carbide Express
Couldn't load pickup availability
Description
Description
The VNMG 160408 is a precision negative carbide turning insert designed for CNC lathe and turning applications. Its 35° diamond geometry provides a versatile cutting solution for external turning, facing, profiling and general machining operations.
With a 0.8 mm nose radius, this insert is suitable for applications requiring a balance between cutting-edge strength and surface finish.
Key Features
- 35° diamond-shaped insert
- 0° negative clearance angle
- 0.8 mm nose radius
- Suitable for CNC turning and conventional lathe applications
- Designed for external turning, facing and profiling
- Available in different carbide grades depending on workpiece material
- Suitable for general-purpose machining applications
Technical Specifications
| Specification | Details |
|---|---|
| Insert Code | VNMG 160408 |
| Insert Shape | 35° Diamond |
| Clearance Angle | 0° Negative |
| Tolerance | M |
| Insert Type | G |
| Insert Size | 16 |
| Thickness | Approx. 4.76 mm |
| Nose Radius | 0.8 mm |
| Cutting Type | Negative |
| Application | CNC Turning / Lathe |
| Brand | Carbide Express |
VNMG 160408 Code Explanation
- V – 35° diamond insert shape
- N – 0° clearance angle
- M – M tolerance class
- G – Insert type/designation
- 16 – Insert size
- 04 – Approx. 4.76 mm thickness
- 08 – 0.8 mm nose radius
Applications
- CNC turning
- External diameter turning
- Facing
- Profiling
- Semi-finishing
- General-purpose machining
- Steel and other machinable metals, depending on selected grade
Carbide Express
Carbide Express supplies carbide cutting tools and CNC tooling solutions for machining applications.
Product: VNMG 160408
Insert Type: Negative Turning Insert
Nose Radius: 0.8 mm
Note: Actual cutting performance depends on carbide grade, workpiece material, cutting speed, feed rate, depth of cut and machine conditions.
