VNMG 160404 Carbide Turning Insert | Carbide Express
VNMG 160404 Carbide Turning Insert | Carbide Express
Couldn't load pickup availability
Description
Description

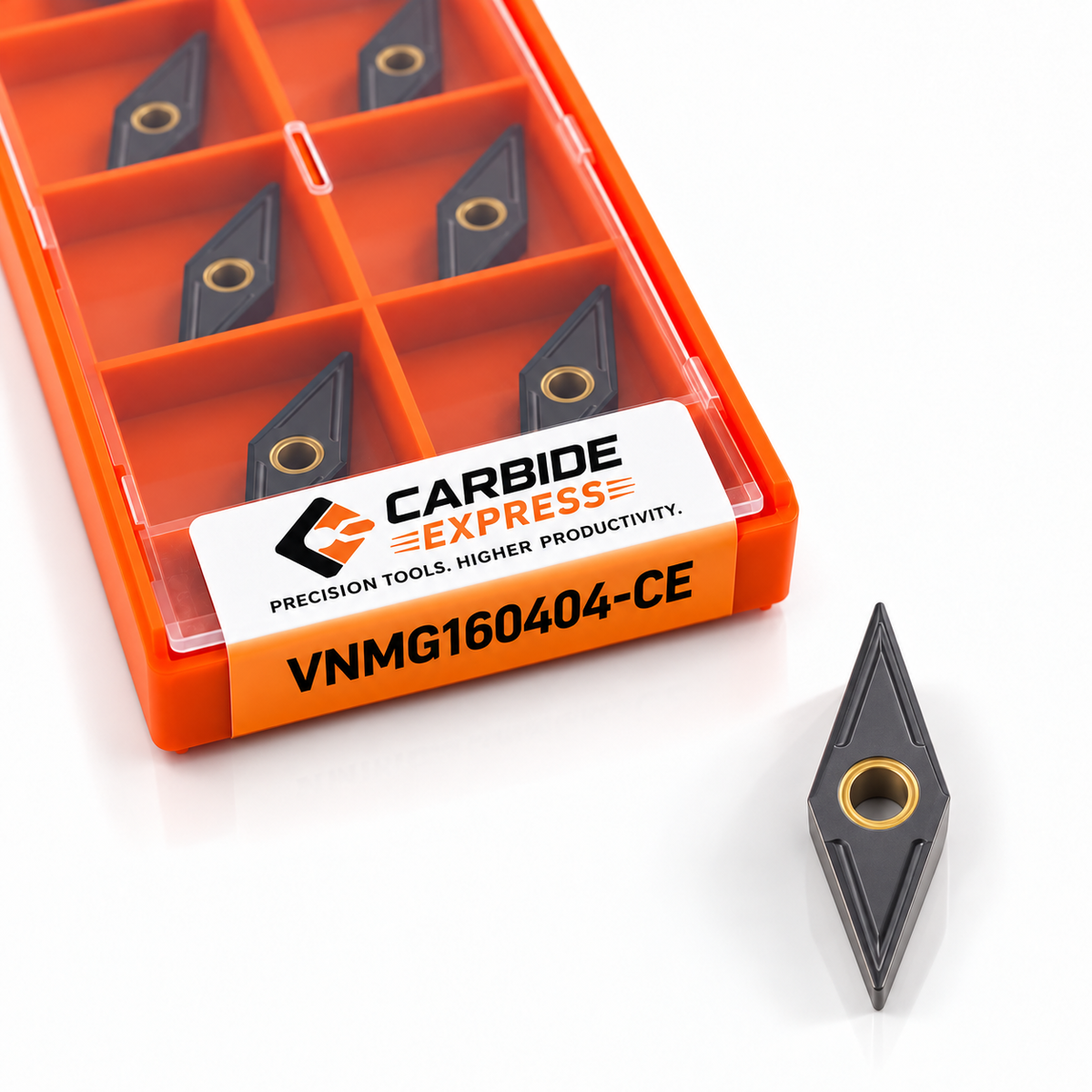

The VNMG 160404 is a precision negative carbide turning insert designed for CNC lathe and turning operations. Its 35° diamond geometry provides versatility for external turning, facing, profiling and general machining applications.
Suitable for machining a wide range of metal components where reliable cutting performance and consistent insert geometry are required.
Key Features
- 35° diamond-shaped turning insert
- Negative 0° clearance angle
- 0.4 mm nose radius
- Suitable for CNC turning and conventional lathe applications
- Ideal for external turning, facing and profiling
- Available in multiple carbide grades depending on material and application
- Designed for consistent and repeatable machining
Technical Specifications
| Specification | Details |
|---|---|
| Insert Code | VNMG 160404 |
| Insert Shape | 35° Diamond |
| Clearance Angle | 0° Negative |
| Tolerance | M |
| Insert Type | G |
| Insert Size | 16 |
| Thickness | 4.76 mm |
| Nose Radius | 0.4 mm |
| Cutting Type | Negative |
| Application | CNC Turning / Lathe |
| Brand | Carbide Express |
VNMG 160404 Code Explanation
- V – 35° diamond insert shape
- N – 0° clearance angle
- M – M tolerance class
- G – Insert type/designation
- 16 – Insert size
- 04 – Approx. 4.76 mm thickness
- 04 – 0.4 mm nose radius
Applications
- CNC turning
- External diameter turning
- Facing
- Profiling
- General-purpose machining
- Steel and other machinable metals, depending on selected grade
Carbide Express
Carbide Express provides carbide cutting tools and CNC tooling solutions for modern machining requirements.
Product: VNMG 160404
Insert Type: Negative Turning Insert
Nose Radius: 0.4 mm
Note: Cutting performance depends on the selected carbide grade, workpiece material, cutting speed, feed rate, depth of cut and machining conditions.
