TNMG 160408 Carbide Turning Insert | Carbide Express

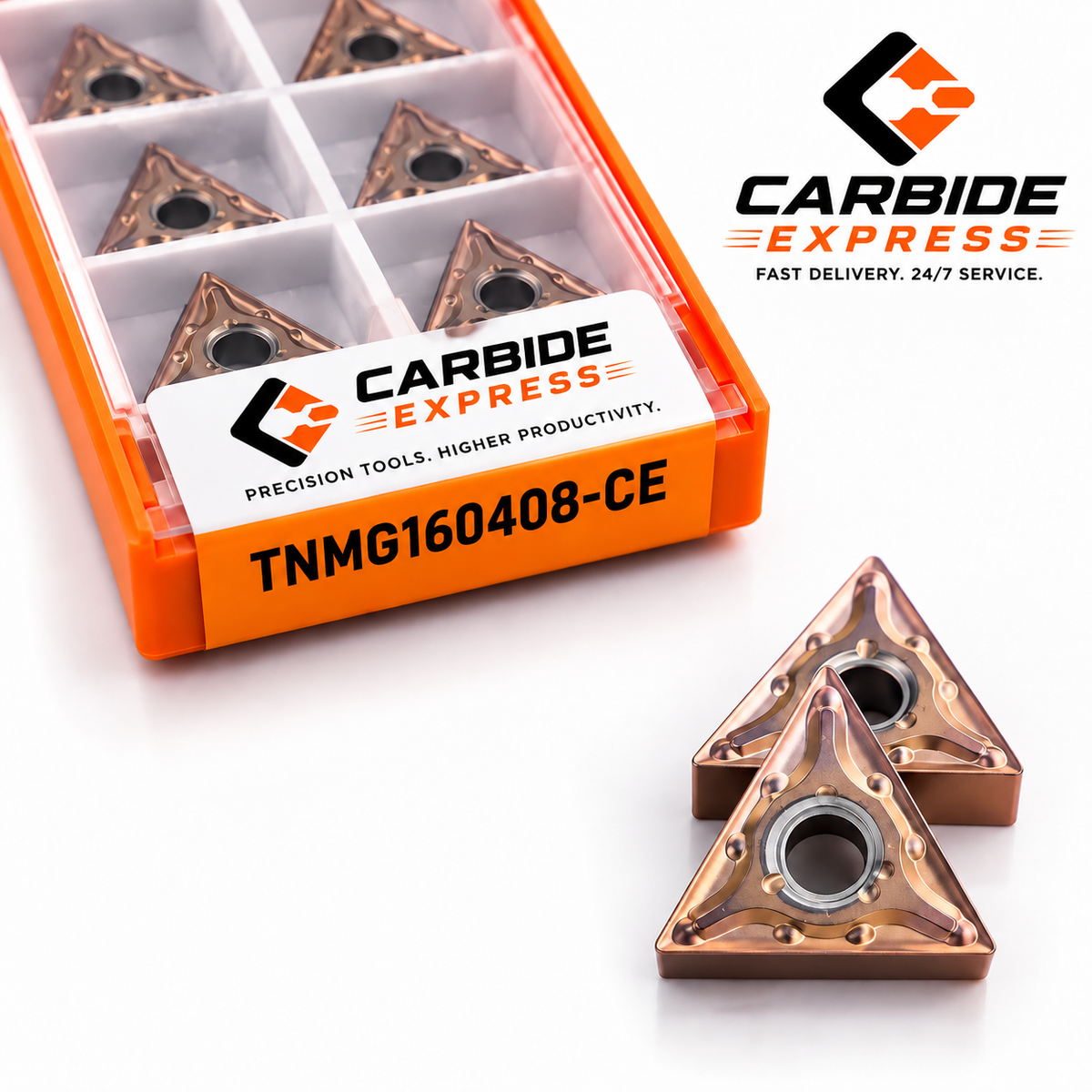

TNMG 160408 Carbide Turning Insert

The Carbide Express TNMG 160408 is a negative-style carbide turning insert designed for CNC lathes and turning centres. Featuring a 60° triangular geometry and a 0.8 mm nose radius, it is suitable for a wide range of CNC turning, profiling, facing and general machining operations.

The triangular geometry provides multiple usable cutting edges, helping provide an economical tooling solution for general-purpose machining when used with the correct tool holder, carbide grade and cutting conditions.

Key Features

• Standard TNMG 160408 insert geometry

• 60° triangular cutting geometry

• 0° clearance angle

• 0.8 mm nose radius

• Negative-style turning insert

• Multiple usable cutting edges

• Suitable for CNC lathe and turning centre applications

• Suitable for external turning and facing

• Suitable for profiling and general turning

• Available in different carbide grades and coatings

• Grade selection based on workpiece material and machining conditions

Typical Applications

TNMG 160408 inserts can be used for:

• CNC turning

• External turning

• Facing

• Profile turning

• Step turning

• Semi-finishing

• General-purpose turning

• Light to medium machining operations

Actual application suitability depends on the selected carbide grade, coating, workpiece material, tool holder, machine rigidity and cutting parameters.

Technical Specifications

Understanding TNMG 160408

T – 60° triangular-shaped insert
N – 0° clearance angle / negative insert
M – M tolerance class
G – Insert type
16 – Insert size
04 – Insert thickness
08 – 0.8 mm nose radius

Compatibility

Designed for compatible TNMG-style CNC turning tool holders that accept the corresponding insert size and geometry.

Always verify the insert code, grade and tool-holder compatibility before machining.

Grade Selection

Choose the carbide grade according to the workpiece material and machining conditions.

Typical ISO material groups include:

• P – Steel

• M – Stainless Steel

• K – Cast Iron

• N – Non-ferrous Materials

• S – Heat-resistant Alloys

• H – Hardened Materials

The exact grades and coatings available depend on the Carbide Express product variant.

Why Carbide Express?

Carbide Express provides carbide cutting tools and CNC tooling solutions for machining industries, making commonly used industrial cutting tools easier to source online.

Carbide Express — Cutting Tools Delivered Faster.

Important Note

Actual tool life and cutting performance depend on workpiece material, machine condition, tool holder, insert grade, coating, cutting speed, feed rate, depth of cut, coolant and other machining conditions.

Please select the appropriate carbide grade and cutting parameters for your application.
