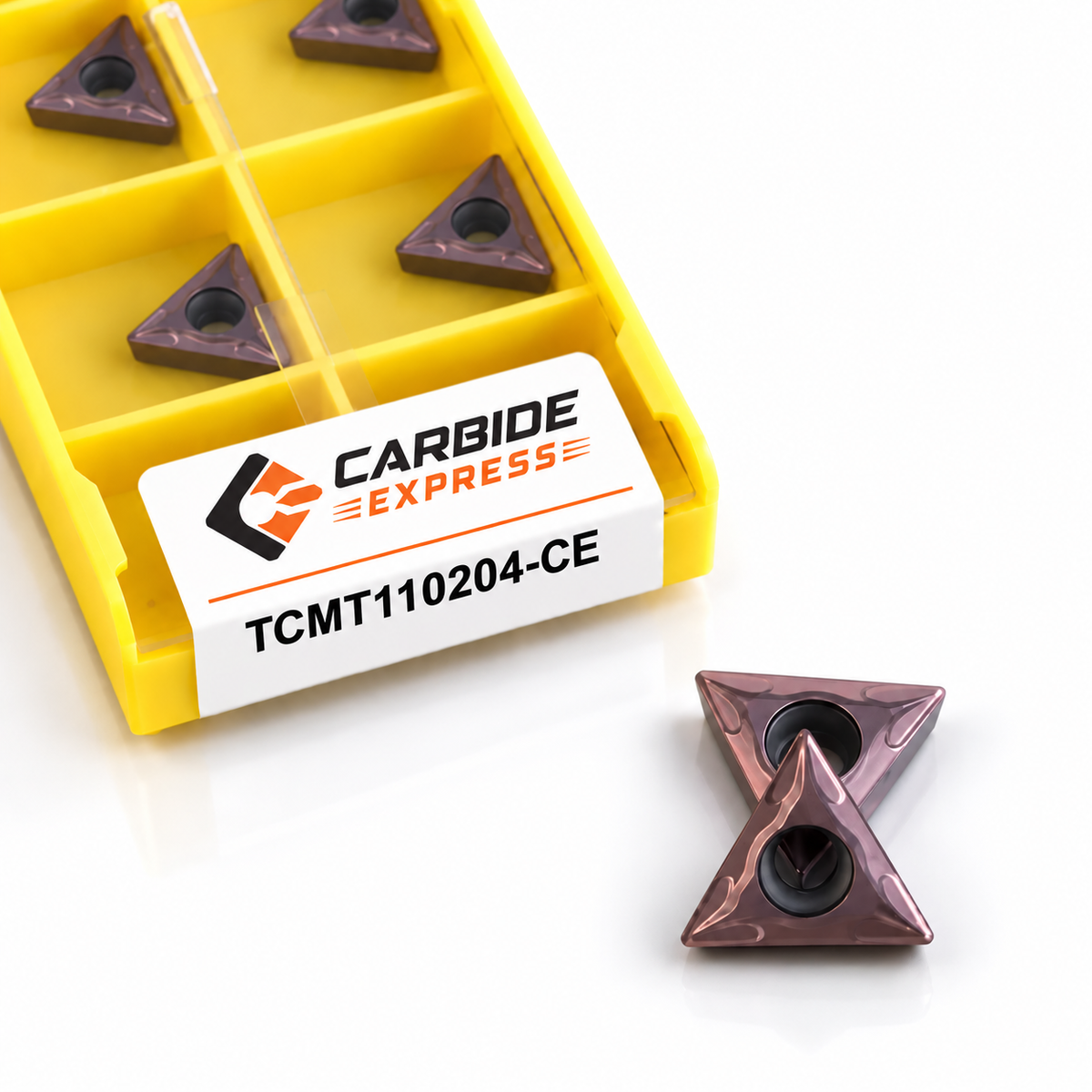

TCMT 110204 Carbide Turning Insert | Carbide Express

The Carbide Express TCMT 110204 is a positive-style carbide turning insert designed for CNC lathes and turning centres. Its 60° triangular geometry, 7° positive clearance angle, and 0.4 mm nose radius make it suitable for precision turning, facing, profiling and finishing applications.

The positive geometry provides a sharp cutting profile and is well suited to applications requiring controlled cutting forces and good surface finish.

Key Features

• 60° triangular-shaped insert

• 7° positive clearance angle

• 0.4 mm nose radius

• Positive-style turning insert

• Suitable for CNC lathes and turning centres

• Suitable for external and internal turning

• Suitable for profiling and contour turning

• Suitable for facing and finishing

• Suitable for precision machining

• Available in different carbide grades and coatings

Typical Applications

• CNC turning

• Precision turning

• External turning

• Internal turning

• Facing

• Profiling

• Contour turning

• Finishing

• Semi-finishing

• General-purpose machining

Technical Specifications

Understanding TCMT 110204

T – 60° triangular insert shape
C – 7° positive clearance angle
M – M tolerance class
T – Insert type/designation
11 – Insert size
02 – Approx. 2.38 mm thickness
04 – 0.4 mm nose radius

Compatibility

TCMT 110204 is designed for compatible TCMT turning tool holders that accept the corresponding insert size and geometry.

Always verify the insert dimensions, tool-holder specification and grade before machining.

Grade Selection

Select the carbide grade according to the workpiece material and machining conditions.

Typical ISO material groups include:

• P – Steel

• M – Stainless Steel

• K – Cast Iron

• N – Non-ferrous Materials

• S – Heat-resistant Alloys

• H – Hardened Materials

Exact suitability depends on the selected carbide grade and coating.

Carbide Express

Carbide Express provides carbide cutting tools and CNC tooling solutions for machining applications.

Product: TCMT 110204
Insert Type: Positive Turning Insert
Nose Radius: 0.4 mm

Carbide Express — Cutting Tools Delivered Faster.

Important Note

Actual cutting performance and tool life depend on carbide grade, coating, workpiece material, machine rigidity, tool holder, cutting speed, feed rate, depth of cut, coolant and other machining conditions.
