DNMG 150608 Carbide Turning Insert | Carbide Express

DNMG 150608 Carbide Turning Insert

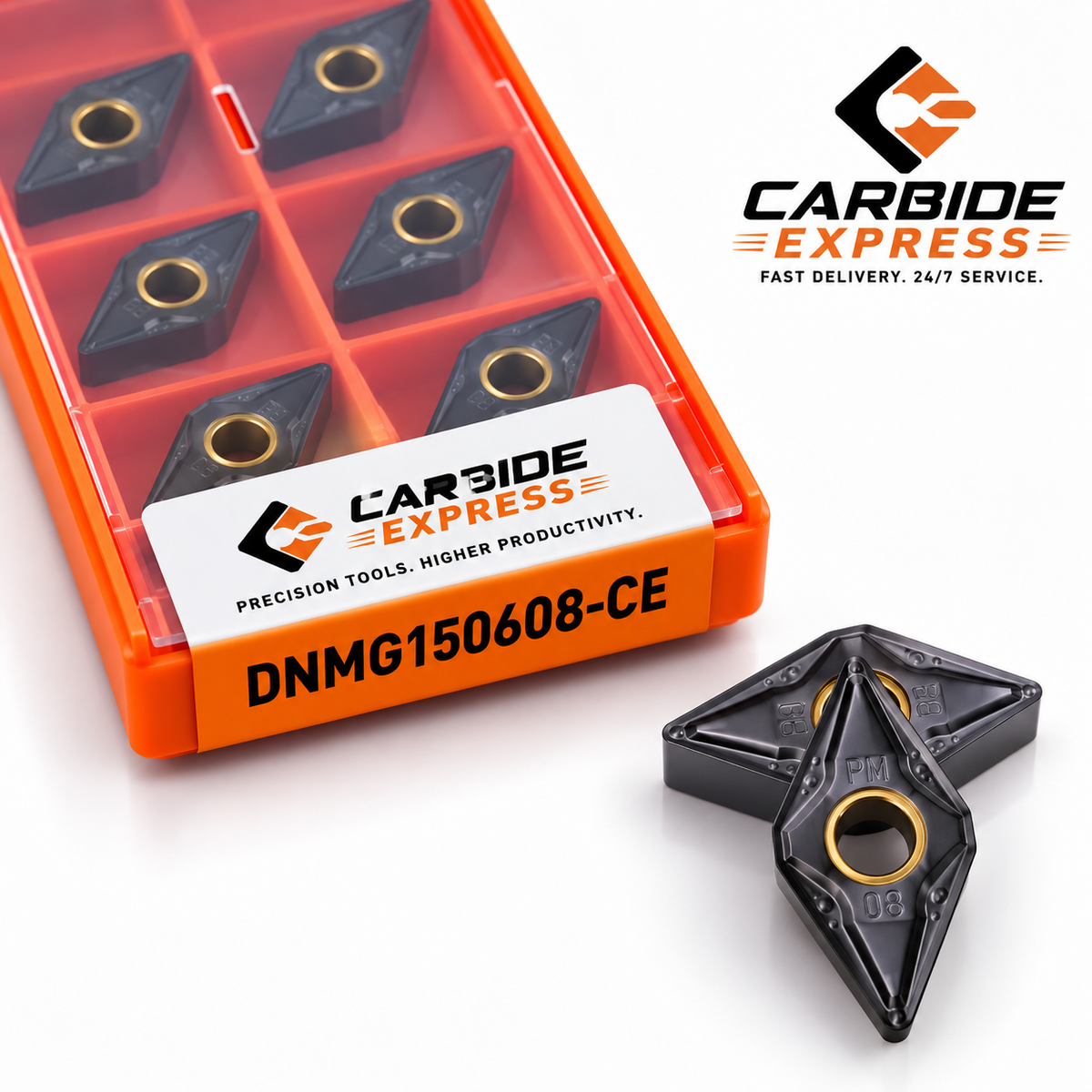

The Carbide Express DNMG 150608 is a negative-style carbide turning insert designed for CNC lathes and turning centres. It features a 55° diamond-shaped geometry with a 0.8 mm nose radius, making it suitable for general turning, profiling, facing and finishing applications.

The 55° diamond geometry provides access to contours and profiles that may be difficult to machine with larger-angle insert geometries. The 0.8 mm nose radius offers a practical balance between cutting-edge strength, surface finish and machining versatility.

Actual performance depends on the selected carbide grade, coating, workpiece material, tool holder, machine rigidity and cutting parameters.

Key Features

• Standard DNMG 150608 insert geometry

• 55° diamond-shaped cutting geometry

• 0° clearance angle

• 0.8 mm nose radius

• Negative-style turning insert

• Multiple usable cutting edges

• Suitable for CNC lathes and turning centres

• Suitable for external turning and facing

• Suitable for profiling and contour turning

• Suitable for roughing, semi-finishing and finishing depending on grade

• Available in different carbide grades and coatings

• Grade selection based on workpiece material and machining conditions

Typical Applications

DNMG 150608 inserts can be used for:

• CNC turning

• External turning

• Facing

• Profile turning

• Contour turning

• Step turning

• Semi-finishing

• Finishing

• General-purpose machining

Actual application suitability depends on the selected carbide grade, coating, workpiece material, tool holder, machine rigidity and cutting parameters.

Technical Specifications

Understanding DNMG 150608

D – 55° diamond-shaped insert
N – 0° clearance angle / negative insert
M – M tolerance class
G – Insert type
15 – Insert size
06 – Insert thickness
08 – 0.8 mm nose radius

Compatibility

Designed for compatible DNMG-style CNC turning tool holders that accept the corresponding insert size and geometry.

Always verify the insert code, grade and tool-holder compatibility before machining.

Grade Selection

Choose the carbide grade according to the workpiece material and machining conditions.

Typical ISO material groups include:

• P – Steel

• M – Stainless Steel

• K – Cast Iron

• N – Non-ferrous Materials

• S – Heat-resistant Alloys

• H – Hardened Materials

The exact grades and coatings available depend on the Carbide Express product variant.

Why Carbide Express?

Carbide Express provides carbide cutting tools and CNC tooling solutions for machining industries, making commonly used industrial cutting tools easier to source online.

Carbide Express — Cutting Tools Delivered Faster.

Important Note

Actual tool life and cutting performance depend on workpiece material, machine condition, tool holder, insert grade, coating, cutting speed, feed rate, depth of cut, coolant and other machining conditions.

Please select the appropriate carbide grade and cutting parameters for your application.
