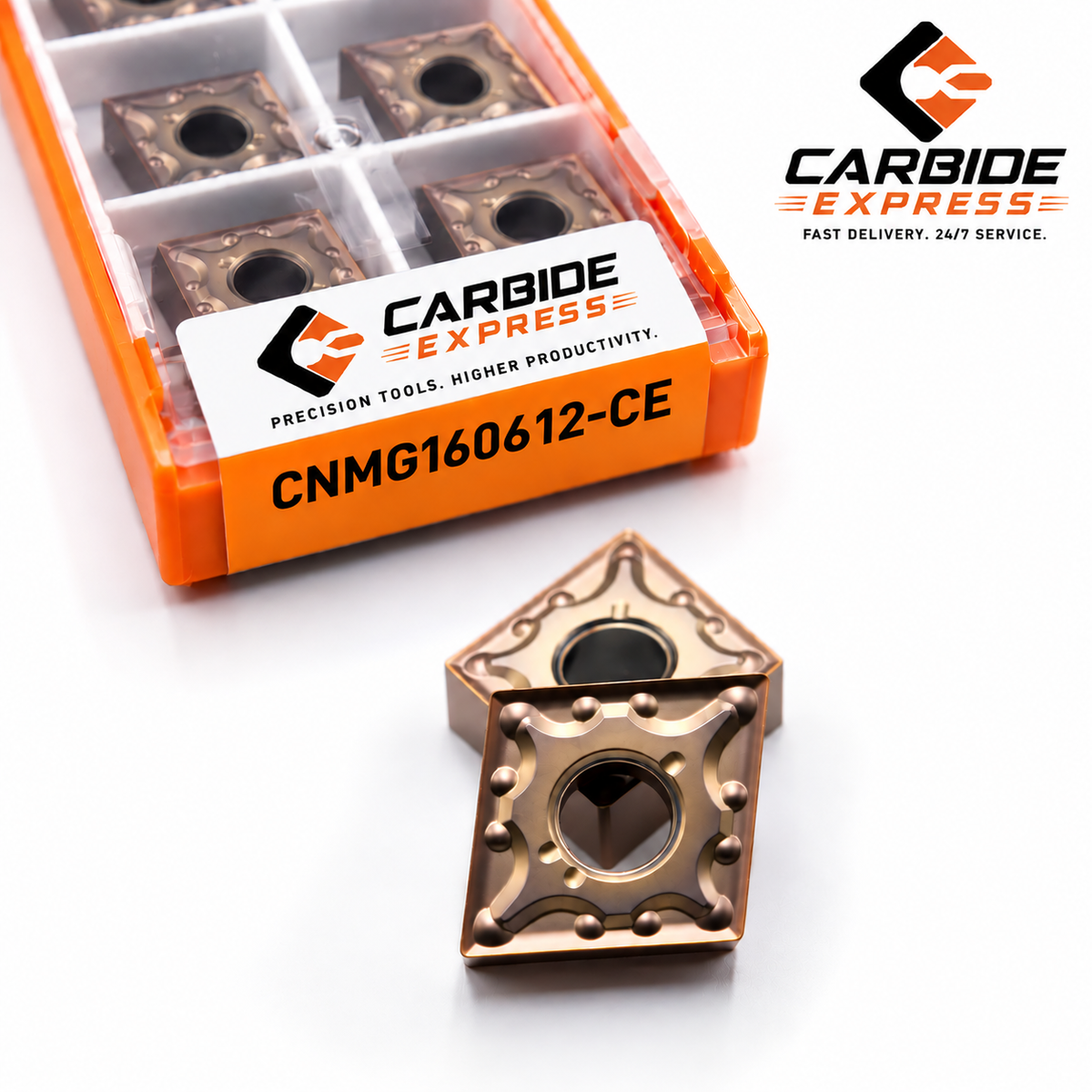

CNMG 160612 Carbide Turning Insert

The Carbide Express CNMG 160612 is a negative-style carbide turning insert designed for CNC lathes and turning centres. Featuring an 80° diamond-shaped geometry and a 1.2 mm nose radius, it provides a strong cutting edge for general turning, roughing, facing and semi-finishing operations.

The larger 1.2 mm nose radius provides a robust cutting edge suitable for material removal and heavier machining conditions when used with the appropriate carbide grade, tool holder and cutting parameters.

Key Features

• Standard CNMG 160612 geometry

• 80° diamond-shaped cutting geometry

• 0° clearance angle

• 1.2 mm nose radius

• Negative-style turning insert

• Strong and durable cutting edge

• Suitable for CNC lathes and turning centres

• Suitable for external turning and facing

• Suitable for roughing and semi-finishing

• Available in different carbide grades and coatings

• Grade selection based on workpiece material and machining conditions

Typical Applications

CNMG 160612 inserts can be used for:

• CNC turning

• External turning

• Facing

• Rough turning

• Heavy material removal

• Semi-finishing

• Step turning

• General-purpose machining

Actual application suitability depends on the selected carbide grade, coating, workpiece material, tool holder, machine rigidity and cutting parameters.

Technical Specifications

Understanding CNMG 160612

C – 80° diamond-shaped insert
N – 0° clearance angle / negative insert
M – M tolerance class
G – Insert type
16 – Insert size
06 – Insert thickness
12 – 1.2 mm nose radius

Compatibility

Designed for compatible CNMG-style CNC turning tool holders that accept the corresponding insert size and geometry.

Always verify the insert code, grade and tool-holder compatibility before machining.

Grade Selection

Select the carbide grade according to the workpiece material and machining conditions.

Typical ISO material groups include:

• P – Steel

• M – Stainless Steel

• K – Cast Iron

• N – Non-ferrous Materials

• S – Heat-resistant Alloys

• H – Hardened Materials

The exact grades and coatings available depend on the Carbide Express product variant.

Why Carbide Express?

Carbide Express provides carbide cutting tools and CNC tooling solutions for machining industries, making commonly used industrial cutting tools easier to source online.

Carbide Express — Cutting Tools Delivered Faster.

Important Note

Actual tool life and cutting performance depend on workpiece material, machine condition, tool holder, insert grade, coating, cutting speed, feed rate, depth of cut, coolant and other machining conditions.

Please select the appropriate carbide grade and cutting parameters for your application.
