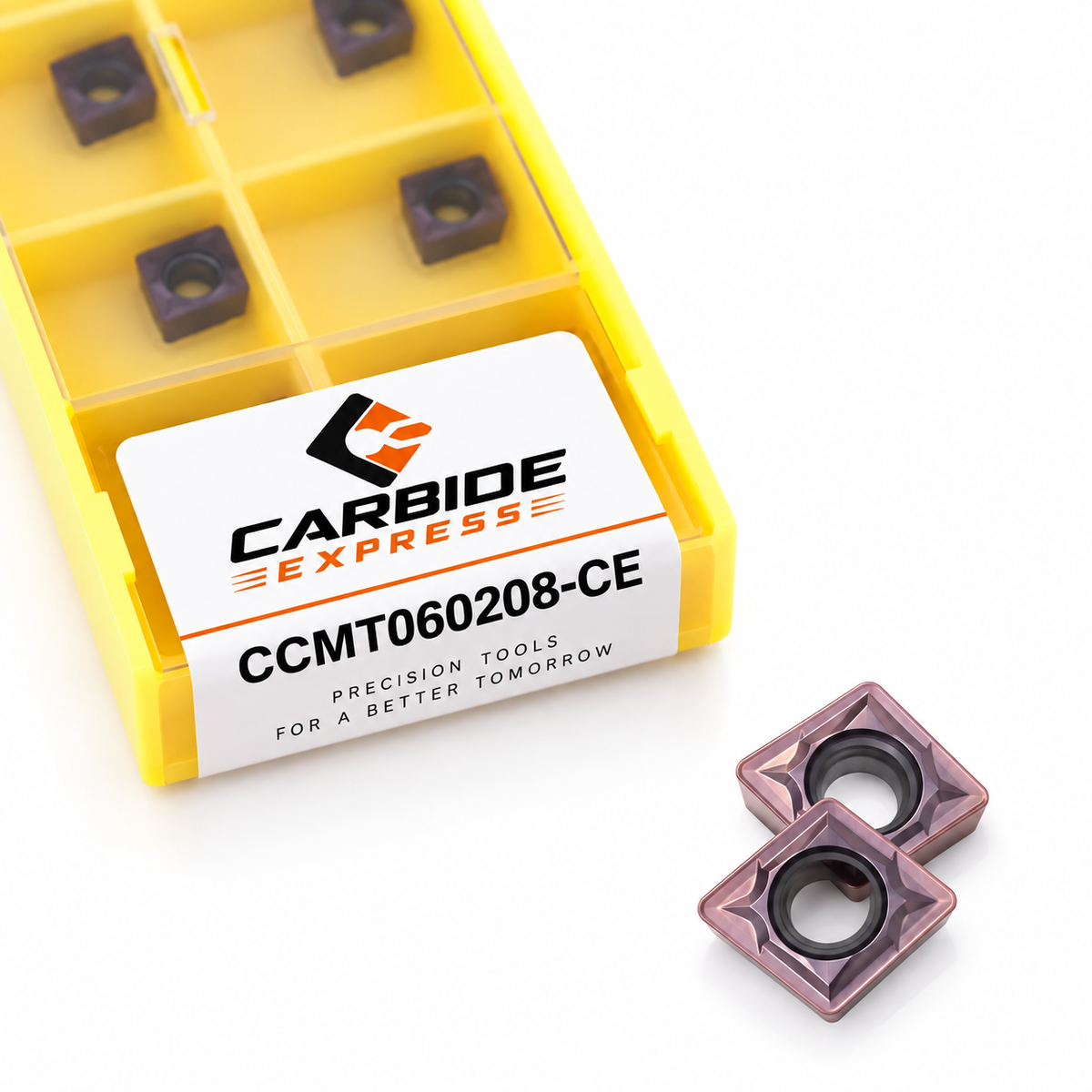

CCMT 060208 Carbide Turning Insert | Carbide Express

The Carbide Express CCMT 060208 is a positive-style carbide turning insert designed for CNC lathes and turning centres. Its 80° diamond geometry, 7° positive clearance angle, and 0.8 mm nose radius make it suitable for precision turning, facing, profiling and finishing applications.

The positive cutting geometry is suitable for applications where reduced cutting forces, a sharp cutting edge and good surface finish are important.

Key Features

• 80° diamond-shaped insert

• 7° positive clearance angle

• 0.8 mm nose radius

• Positive-style turning insert

• Suitable for CNC lathes and turning centres

• Suitable for external and internal turning

• Suitable for facing and profiling

• Suitable for finishing and semi-finishing

• Suitable for precision machining applications

• Available in different carbide grades and coatings

Typical Applications

• CNC turning

• Precision turning

• External turning

• Internal turning

• Facing

• Profiling

• Finishing

• Semi-finishing

• Small component machining

Technical Specifications

Understanding CCMT 060208

C – 80° diamond-shaped insert
C – 7° positive clearance angle
M – M tolerance class
T – Insert type/designation
06 – Insert size
02 – Approx. 2.38 mm thickness
08 – 0.8 mm nose radius

Compatibility

CCMT 060208 is designed for compatible CCMT turning tool holders that accept the corresponding insert size and geometry.

Always verify the insert dimensions and tool-holder specification before machining.

Grade Selection

Select the carbide grade according to the workpiece material and machining conditions.

Typical ISO material groups include:

• P – Steel

• M – Stainless Steel

• K – Cast Iron

• N – Non-ferrous Materials

• S – Heat-resistant Alloys

• H – Hardened Materials

Exact suitability depends on the selected carbide grade and coating.

Carbide Express

Carbide Express provides carbide cutting tools and CNC tooling solutions for machining applications.

Product: CCMT 060208
Insert Type: Positive Turning Insert
Nose Radius: 0.8 mm

Carbide Express — Cutting Tools Delivered Faster.

Important Note

Actual cutting performance and tool life depend on carbide grade, coating, workpiece material, machine rigidity, tool holder, cutting speed, feed rate, depth of cut, coolant and other machining conditions.
