CCMT 060204 Carbide Turning Insert | Carbide Express

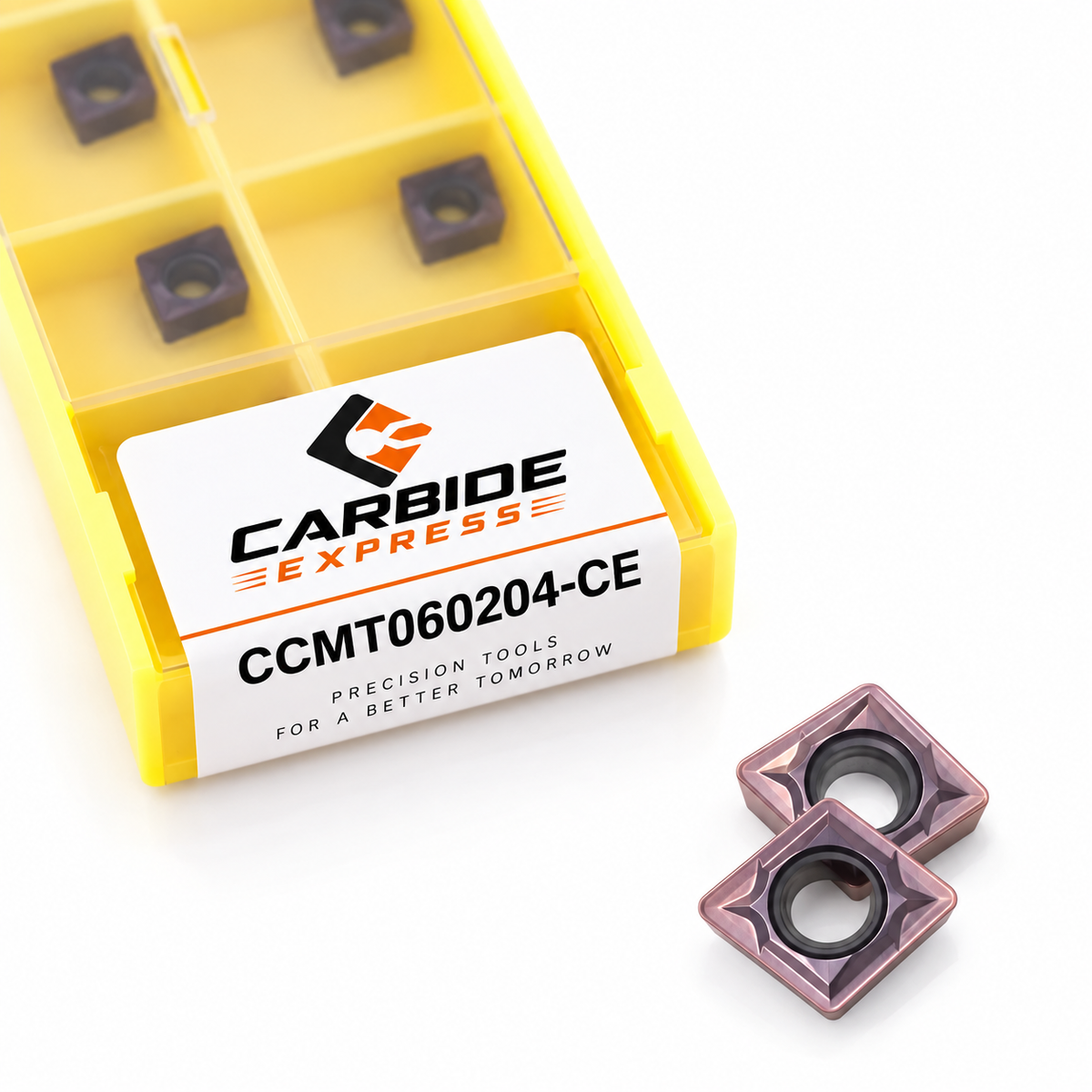

The Carbide Express CCMT 060204 is a positive-style carbide turning insert designed for CNC lathes and turning centres. Its 80° diamond geometry, 7° clearance angle, and 0.4 mm nose radius make it suitable for precision turning, facing, profiling and finishing applications.

The positive geometry can provide reduced cutting forces and is well suited to applications where a sharp cutting edge and good surface finish are required.

Key Features

• 80° diamond-shaped insert

• 7° positive clearance angle

• 0.4 mm nose radius

• Positive-style turning insert

• Suitable for CNC lathes and turning centres

• Suitable for external and internal turning

• Suitable for facing and profiling

• Suitable for finishing and semi-finishing

• Suitable for applications requiring lower cutting forces

• Available in different carbide grades and coatings

Typical Applications

• CNC turning

• Precision turning

• External turning

• Internal turning

• Facing

• Profiling

• Finishing

• Semi-finishing

• Small component machining

Technical Specifications

Understanding CCMT 060204

C – 80° diamond-shaped insert
C – 7° positive clearance angle
M – M tolerance class
T – Insert type/designation
06 – Insert size
02 – Approx. 2.38 mm thickness
04 – 0.4 mm nose radius

Compatibility

CCMT 060204 is designed for compatible CCMT turning tool holders that accept the corresponding insert size and geometry.

Always verify the insert size, tool-holder specification and grade before machining.

Grade Selection

Select the carbide grade according to the workpiece material and machining conditions.

Typical ISO material groups include:

• P – Steel

• M – Stainless Steel

• K – Cast Iron

• N – Non-ferrous Materials

• S – Heat-resistant Alloys

• H – Hardened Materials

Exact material suitability depends on the selected carbide grade and coating.

Carbide Express

Carbide Express provides carbide cutting tools and CNC tooling solutions for machining applications.

Product: CCMT 060204
Insert Type: Positive Turning Insert
Nose Radius: 0.4 mm

Carbide Express — Cutting Tools Delivered Faster.

Important Note

Actual cutting performance and tool life depend on carbide grade, coating, workpiece material, machine rigidity, tool holder, cutting speed, feed rate, depth of cut, coolant and other machining conditions.
