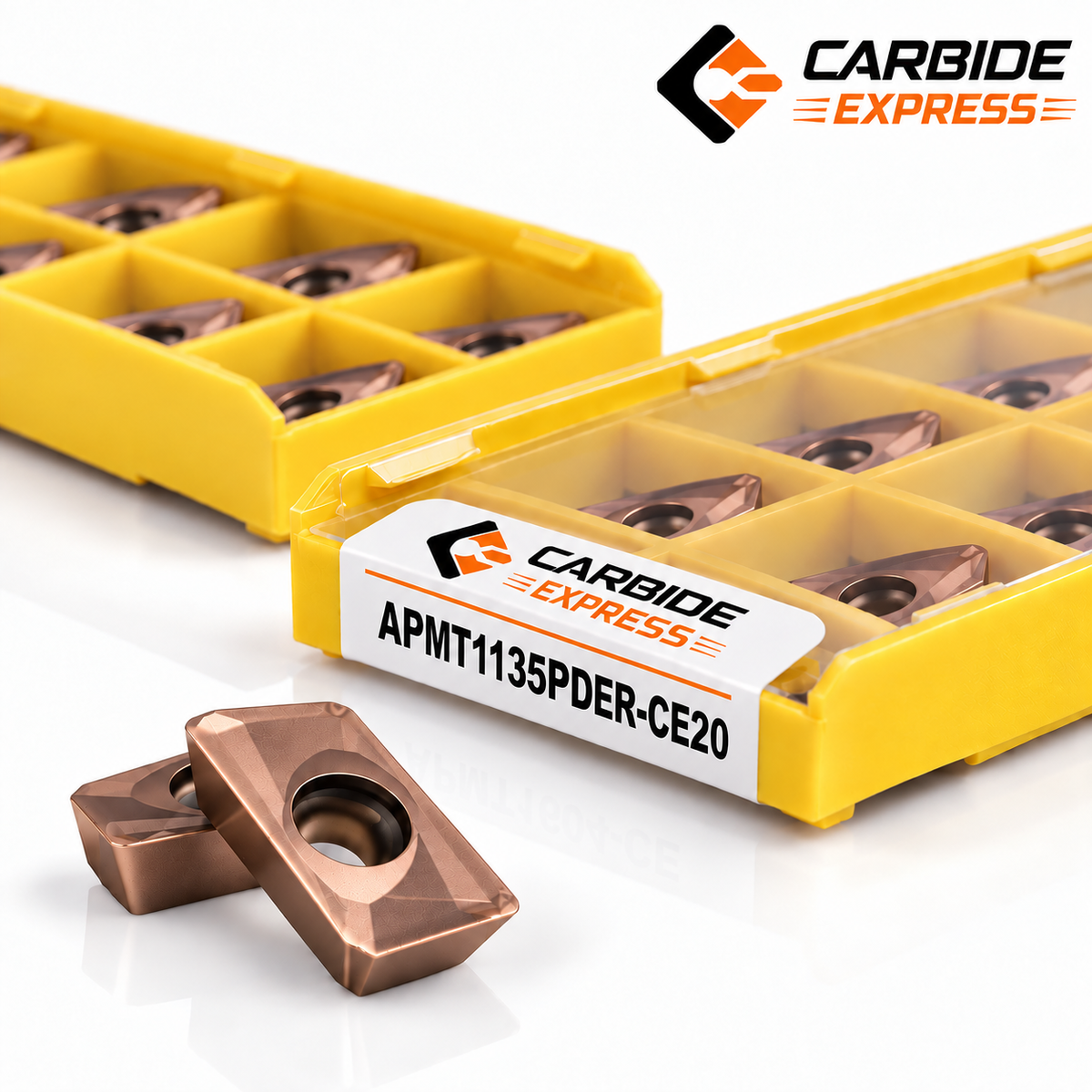

APMT1135PDER-CE20 Carbide Milling Insert
The Carbide Express APMT1135PDER-CE20 is a positive-rake indexable carbide milling insert designed for CNC and VMC machining applications.
Its APMT1135 geometry provides a positive cutting action with an 11° relief angle, while the 0.8 mm corner radius provides a balance between cutting performance and edge strength. APMT1135 inserts are commonly used with compatible shoulder and face milling cutter bodies.
The replaceable insert design allows quick indexing or replacement of worn cutting edges, helping reduce machine downtime and maintain consistent machining performance.
Key Features
- Positive-rake milling insert
- APMT1135PDER geometry
- Carbide construction
- CE20 grade
- 0.8 mm corner radius
- 11° positive relief angle
- Center mounting hole
- 2 usable cutting edges
- Suitable for CNC and VMC machines
- Designed for compatible APMT cutter bodies
- Suitable for shoulder and general milling applications
- Quick and easy insert replacement
Technical Specifications
| Specification |
Details |
| Product Code |
APMT1135PDER-CE20 |
| Insert Type |
APMT Milling Insert |
| Geometry |
APMT1135PDER |
| Grade |
CE20 |
| Material |
Cemented Carbide |
| Insert Shape |
85° Parallelogram |
| Relief Angle |
11° |
| Cutting Edges |
2 |
| Corner Radius |
0.8 mm |
| Length |
Approx. 11.2 mm |
| Width |
Approx. 6.2 mm |
| Thickness |
Approx. 3.5 mm |
| Mounting Hole |
Approx. 2.8 mm |
| Coating |
CE20 coating – verify your actual coating specification |
| Cutting Direction |
Right Hand |
| Application |
Milling |
| Machine |
CNC / VMC |
Published manufacturer/catalog references give slightly different dimensional tolerances—for example, around 11.21–11.39 mm length, 6.2 mm width and 3.5 mm thickness—so I recommend using the dimensions above as nominal rather than advertising unnecessary precision. MSTM
Applications
APMT1135PDER-CE20 can be used for:
- CNC milling
- VMC machining
- Shoulder milling
- Face milling
- Step milling
- Slot milling
- Profiling
- General-purpose milling
- Side milling
- Steel machining
- General engineering applications
Actual workpiece suitability and cutting parameters should be selected according to the CE20 grade's recommended material range and cutting conditions.
Compatible Cutter Types
Suitable for compatible APMT1135 indexable milling cutter bodies, including compatible:
- Shoulder milling cutters
- Face milling cutters
- Indexable end mills
- VMC milling cutters
- APMT-compatible cutter bodies
Always confirm the insert pocket and screw/clamping system before ordering.
